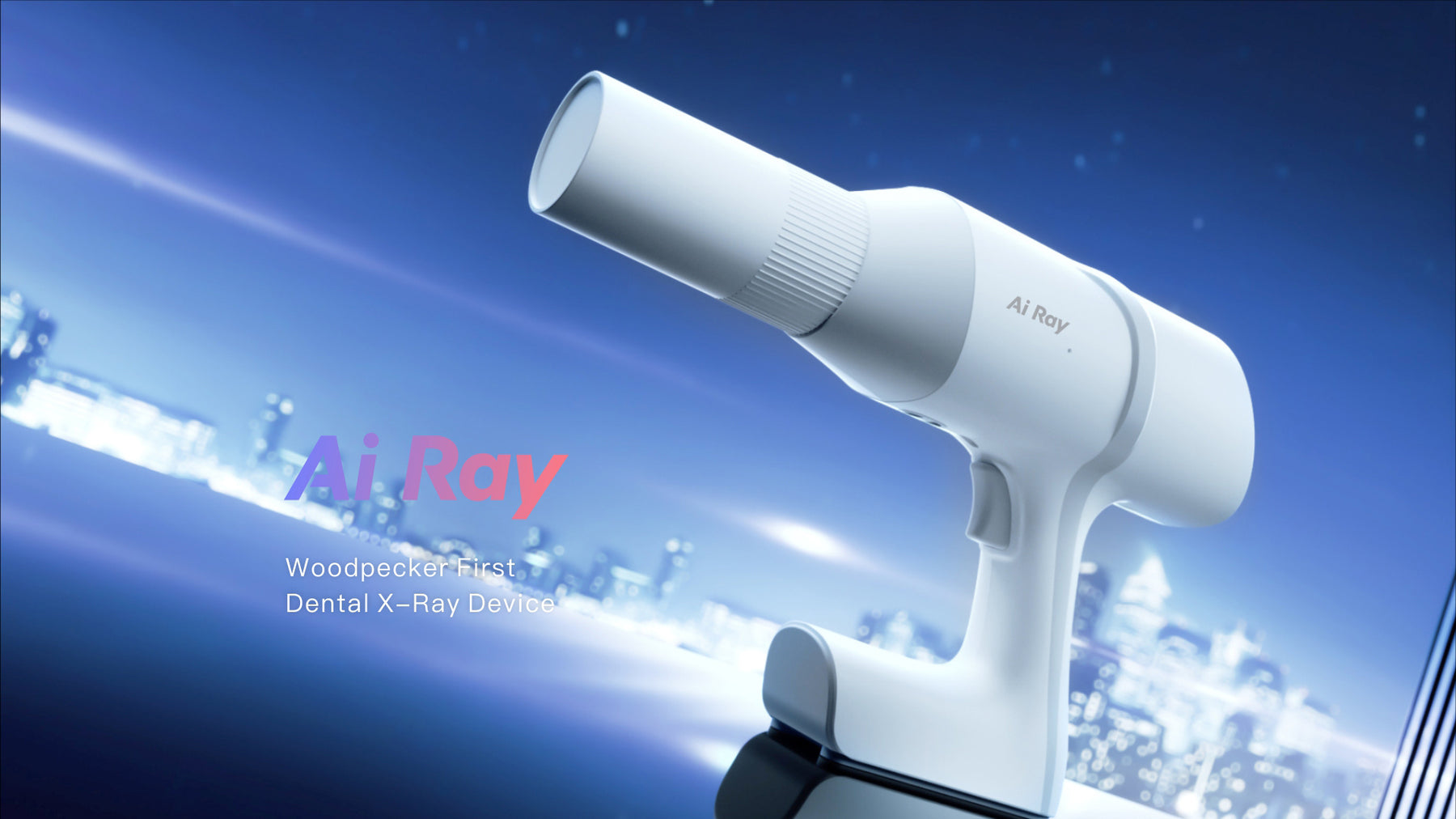

Woodpecker Ai-Ray Portable, Hand Held X-Ray Machine
WDP328
$2,458.00 ex. VAT
Features
- Hand-held portable X-ray unit.
- Compact and portable design.
- Point and shoot function.
- Advanced technology to capture high-quality x-ray images.
- Portable so can move between surgeries.
- Focused beam and lead casing.
- Intuitive control panel.

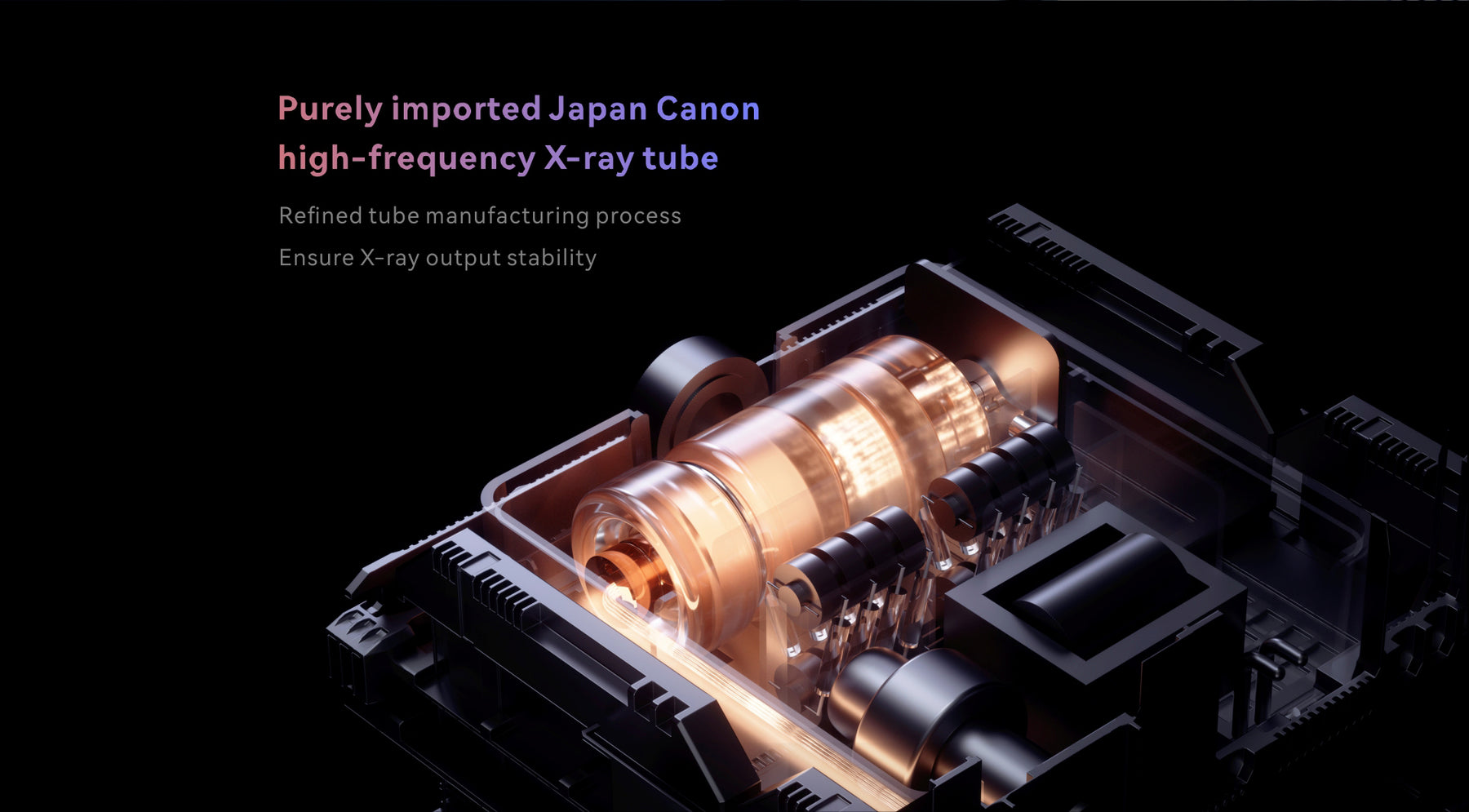

- Purely imported Japan Canon high-frequency X-ray tube
- Ensure X-ray output stability
Super High Performance - High Efficiency
- Emission power up to 210W
- Shorter exposure time with high-power
- Achieve stable, accurate and quick photography of different tooth positions
Various Photographic Methods - Easy to operate
- Built-in remote control receiving circuit and holder interface, can be connected to the wired remote controller and triangle holder.
- A variety of photographing methods are available, ensuring safer photographing and easier operation.
- Corresponding photographing angle reference values provide for different tooth positions during the photography,
- keep the patient in the correct sitting position and adjust the dental X-ray device to obtain the best photographing angle and improve efficiency.
Detailed DENTALFILMS - More Reliability
- 0.4mm focus X-ray tube
- Provide high-quality and clearer images for various diagnostic needs
High-capacity Battery- Longer Endurance
- 15000mAh high-capacity power lithium battery delivers a longer endurance.
- More than 1,500 dental films can be taken under a full charge.
- Takes 4hrs. to fully charge
Maximum Efficiency and Safety
- Constant DC high frequency and voltage-current output
- Ensure that X-ray output is not affected by battery voltage fluctuations
- Unique internal design and lead shield
- Efficiently minimize the X-ray leakage
- Maximize the protection of operators from ionizing radiation
- 2.8 Inch capacitive touch screen
- Over 110 dental X-rays can be taken after 5 mins. of charge
Key Specs:
Power adapter input: 100-240V 50/60Hz 1.5A
Internal power supply: DC 10.8V
Types of radiation: X-ray
Electric power:
- Maximum power: 0.21kw（70kV, 3mA, 0.1s）
- Nominal electric power: 0.21kw（70kV, 3mA, 0.1s）
Tube voltage: tube voltage output is fixed at 70kV, error ±10%
Tube current: tube current output is fixed at 3mA, error ±20%
Loading time: the exposure loading time adjustment range is 0.02s～2s, the grade is adjustable, and the grade is selected according to the R'10 numerical system; with deviation ±(10%+1ms)
X-ray tube :
- X-ray tube model: D-045;
- Focal spot: 0.4mm;
- Target angle: 12.5°;
- Total filtration: 1.5mmAl/70 kV;
- Additional filtration: 0.5mmAl/70 kV
Distance from focus to skin: 20cm
Output radiation field: Φ6cm±0.6cm
Product specifications :
- Dimension: 114mm×363.8mm×245.6mm
- Weight: 2.4KG
Battery specification: 10.8V/2450~15000mAh
Operation environment :
- Environment temperature: 10°C ~ 40°C
- Relative humidity: 30% ~ 75%
- Atmospheric pressure: 70kPa ~ 106kPa
Transportation and storage conditions:
- Storage temperature: -20°C ~ 55°C
- Transportation temperature: -20°C ~ 55°C
- Relative humidity: 10% ~ 93%
- Atmospheric pressure: 70kPa ~ 106kPa
