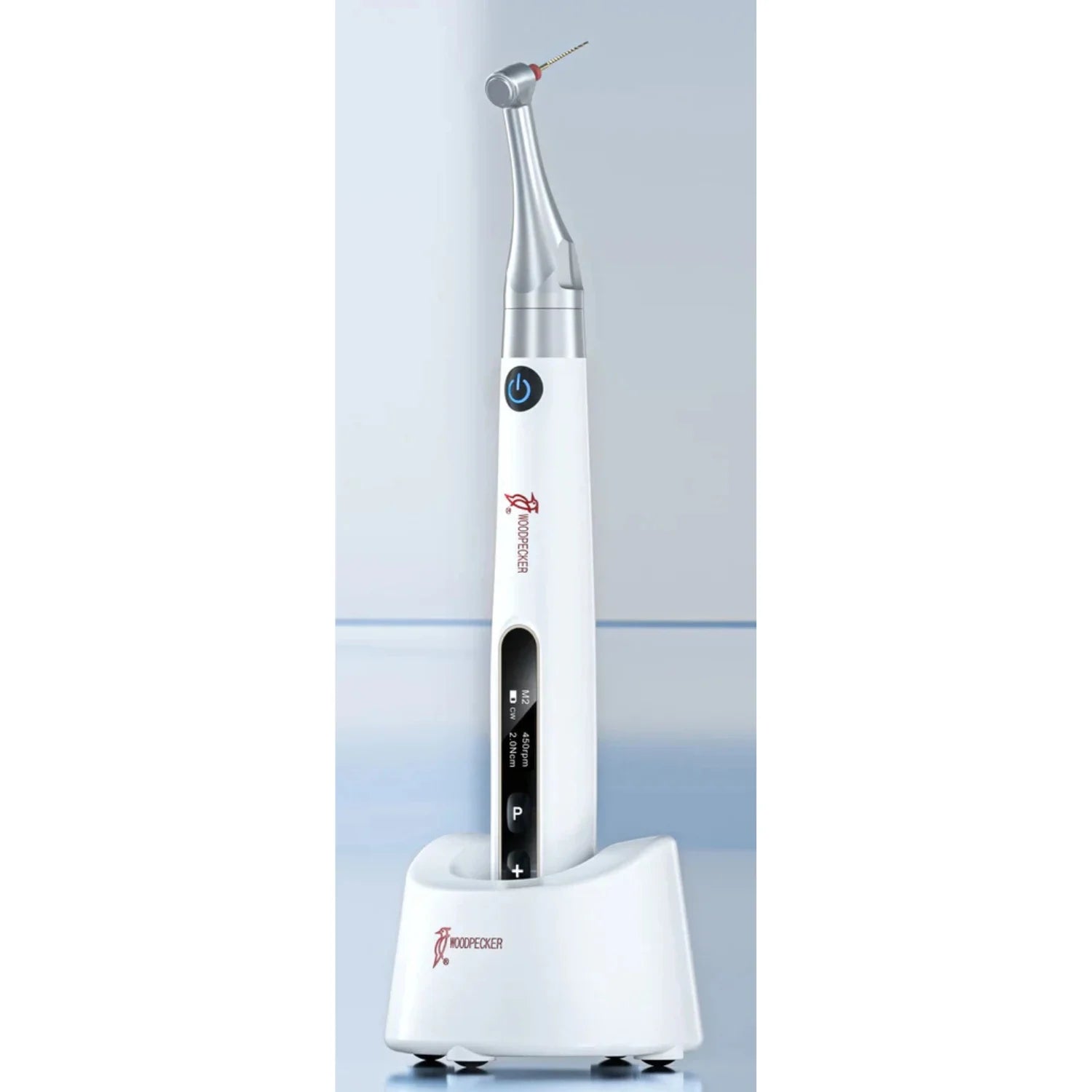

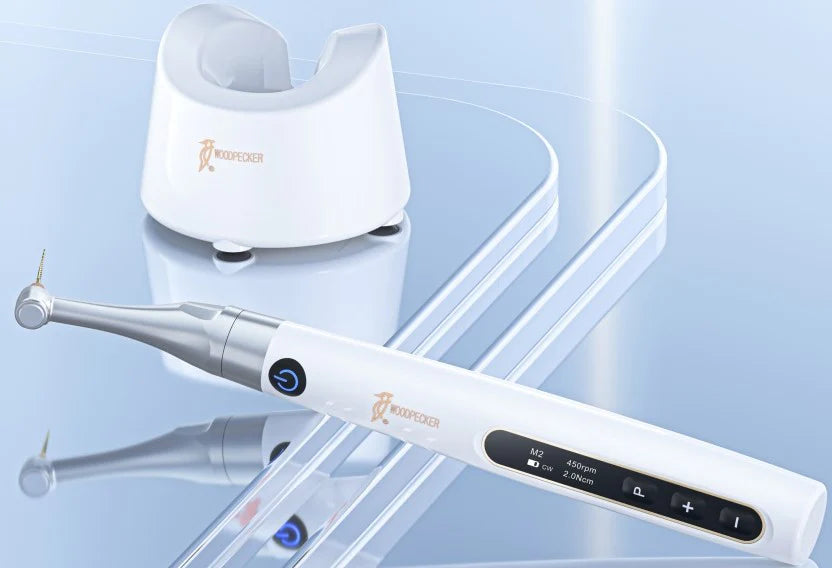

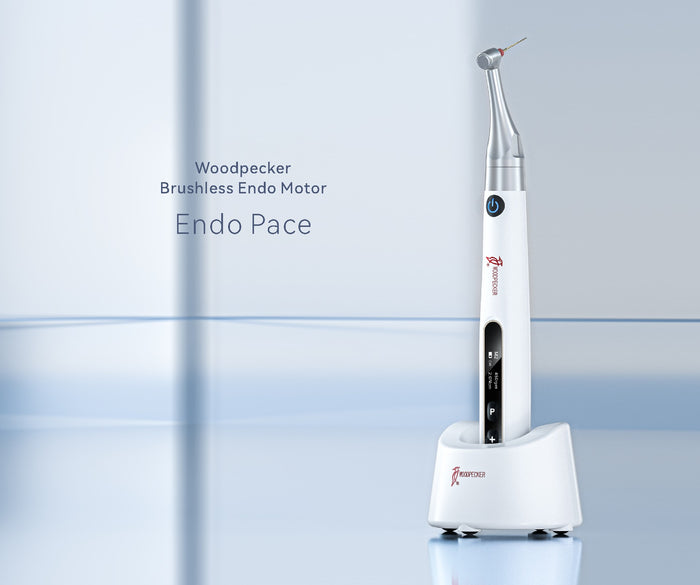

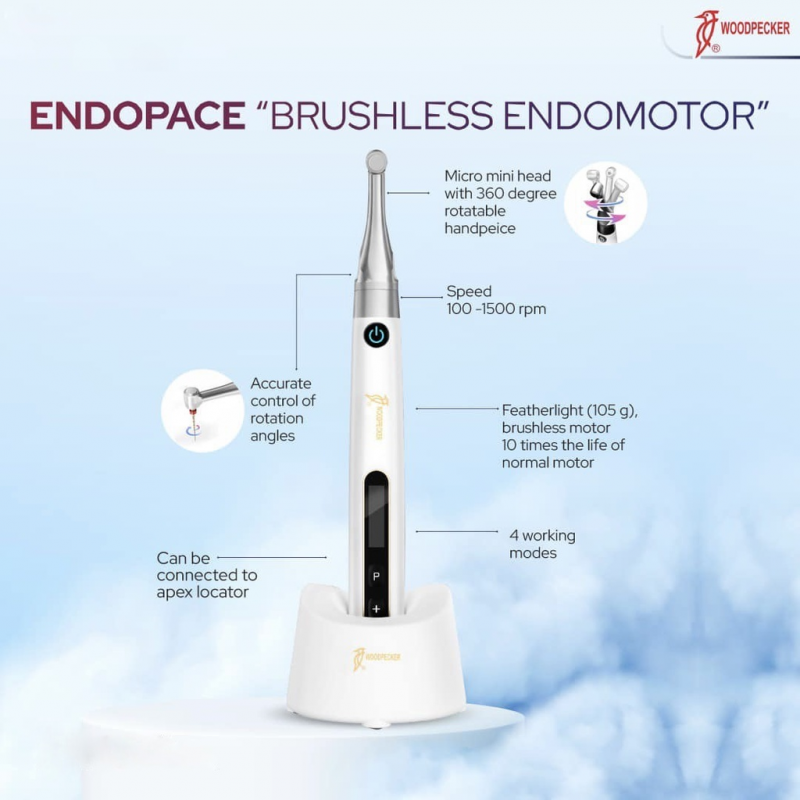

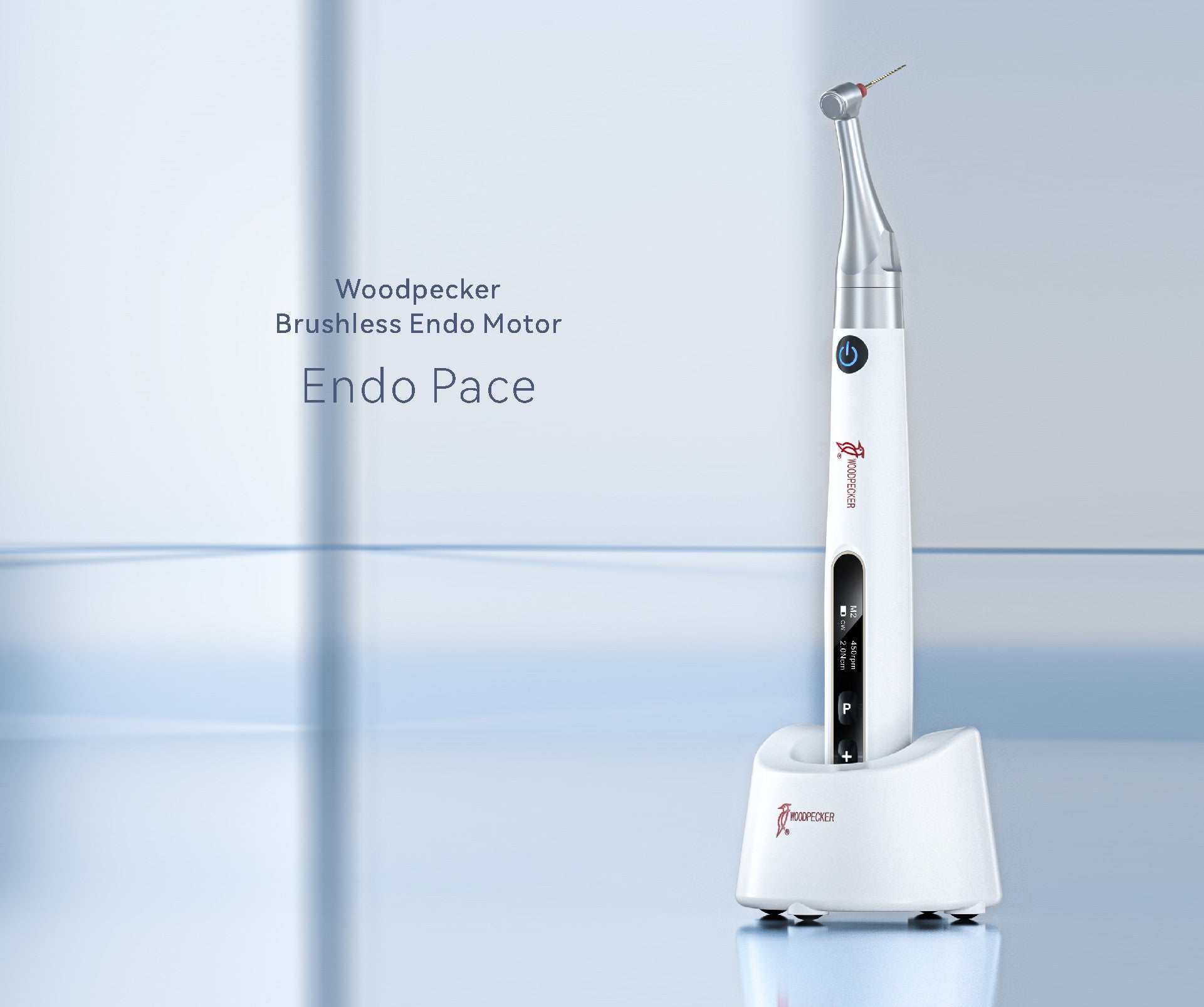

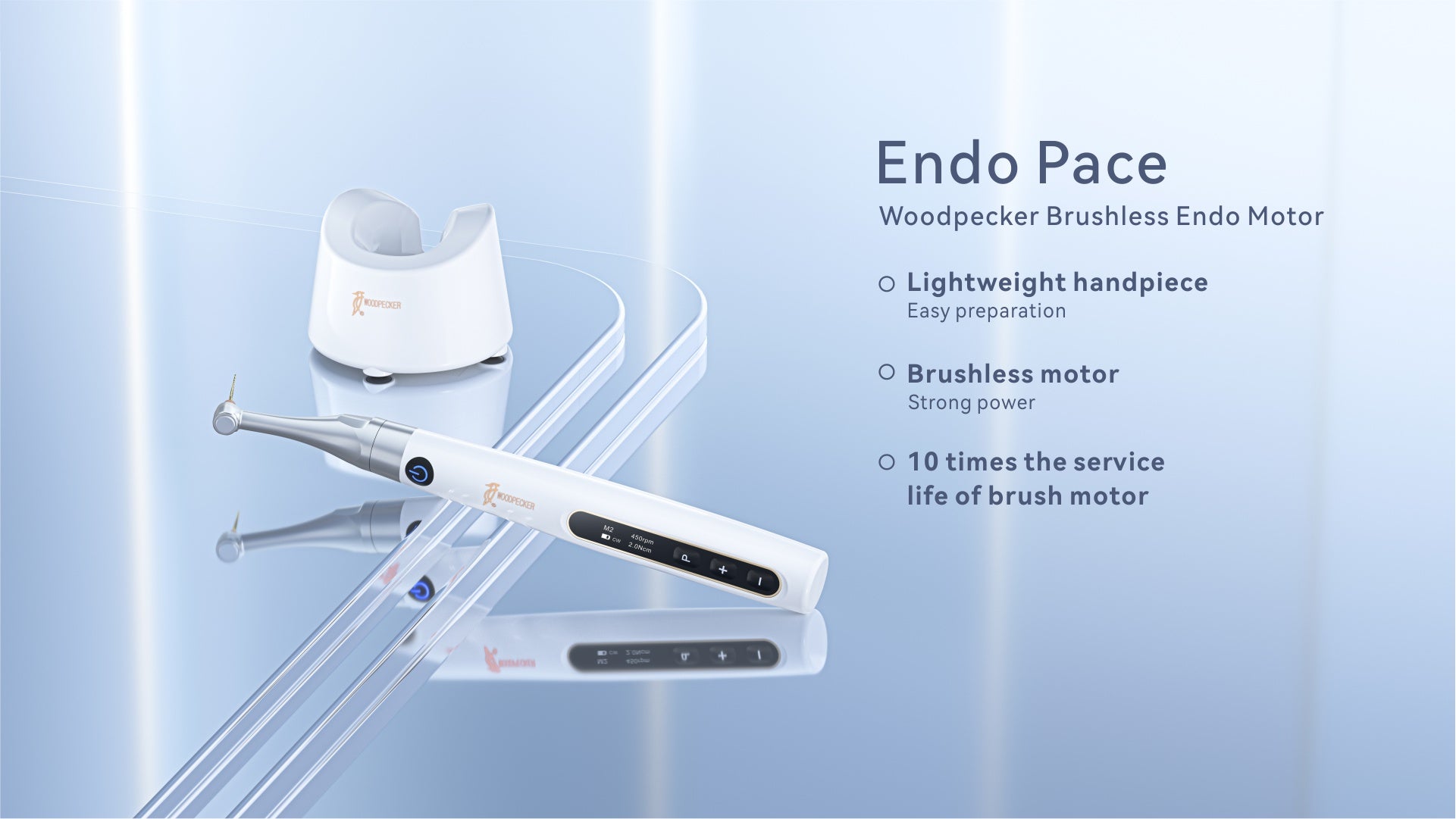

Endo Pace is a cordless endodontic motor designed for endodontic procedures. It can be connected to a compatible apex locator, supporting monitoring of file position within the canal. This integration enables additional operational functions while maintaining ease of use.

Key Features:

Highly Efficient Brushless Motor:

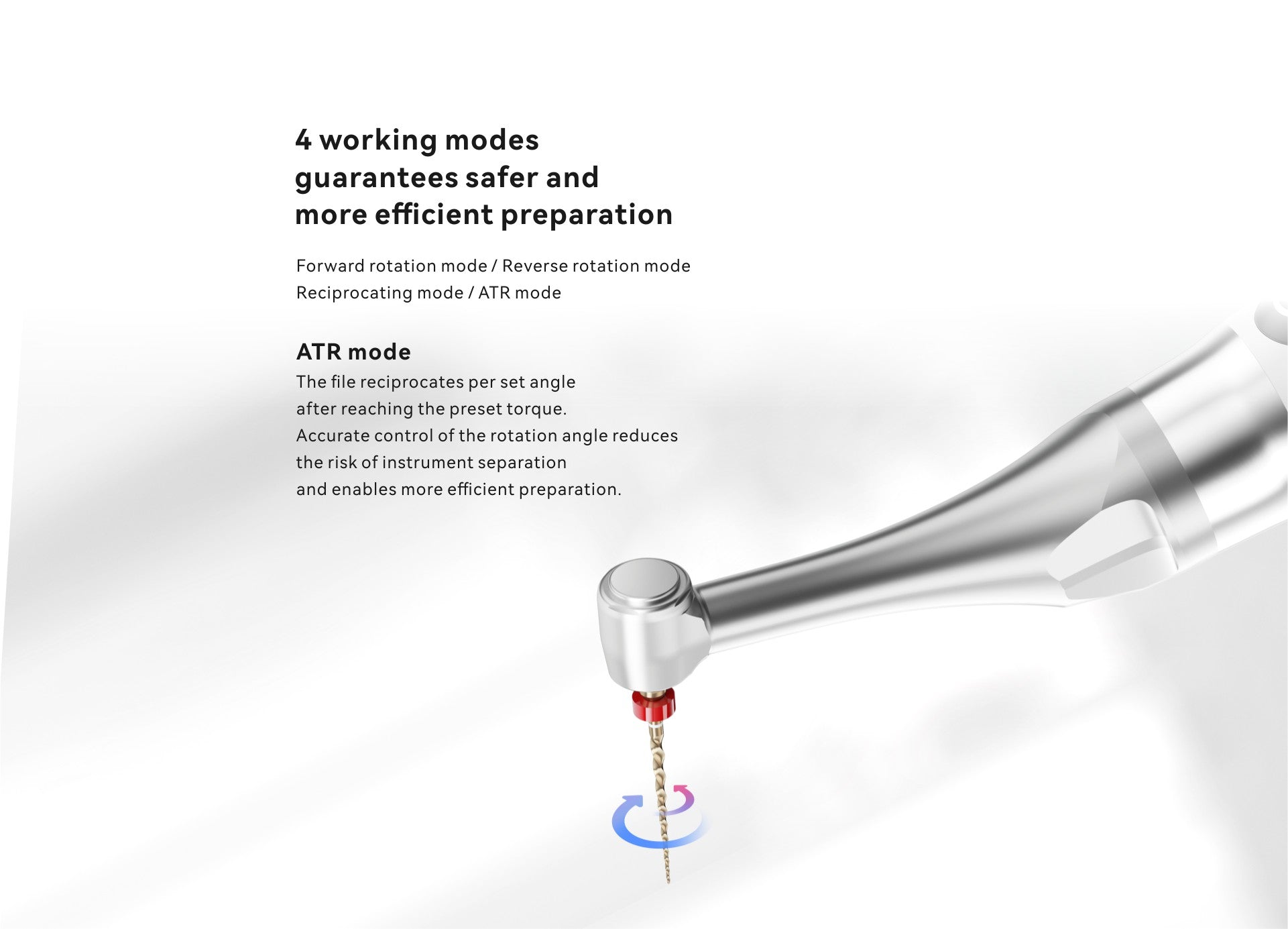

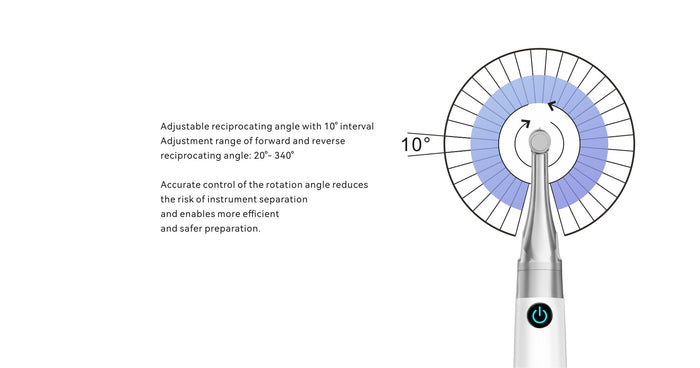

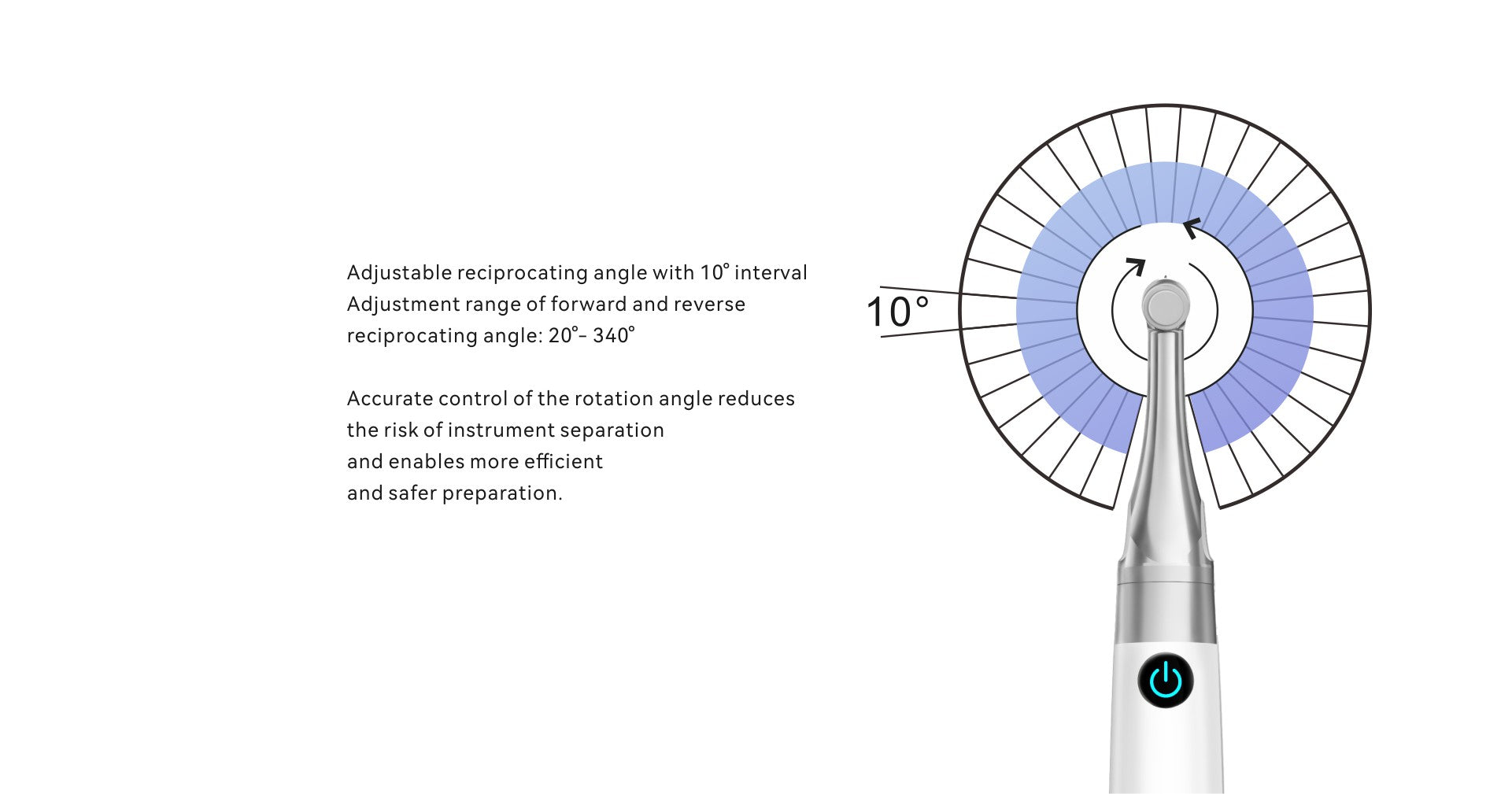

The device has an adjustable reciprocal angle (reciprocating) - intervals of 10°, adjustment range from 20° to 340°
This option allows adjustment of rotation angles for different applications

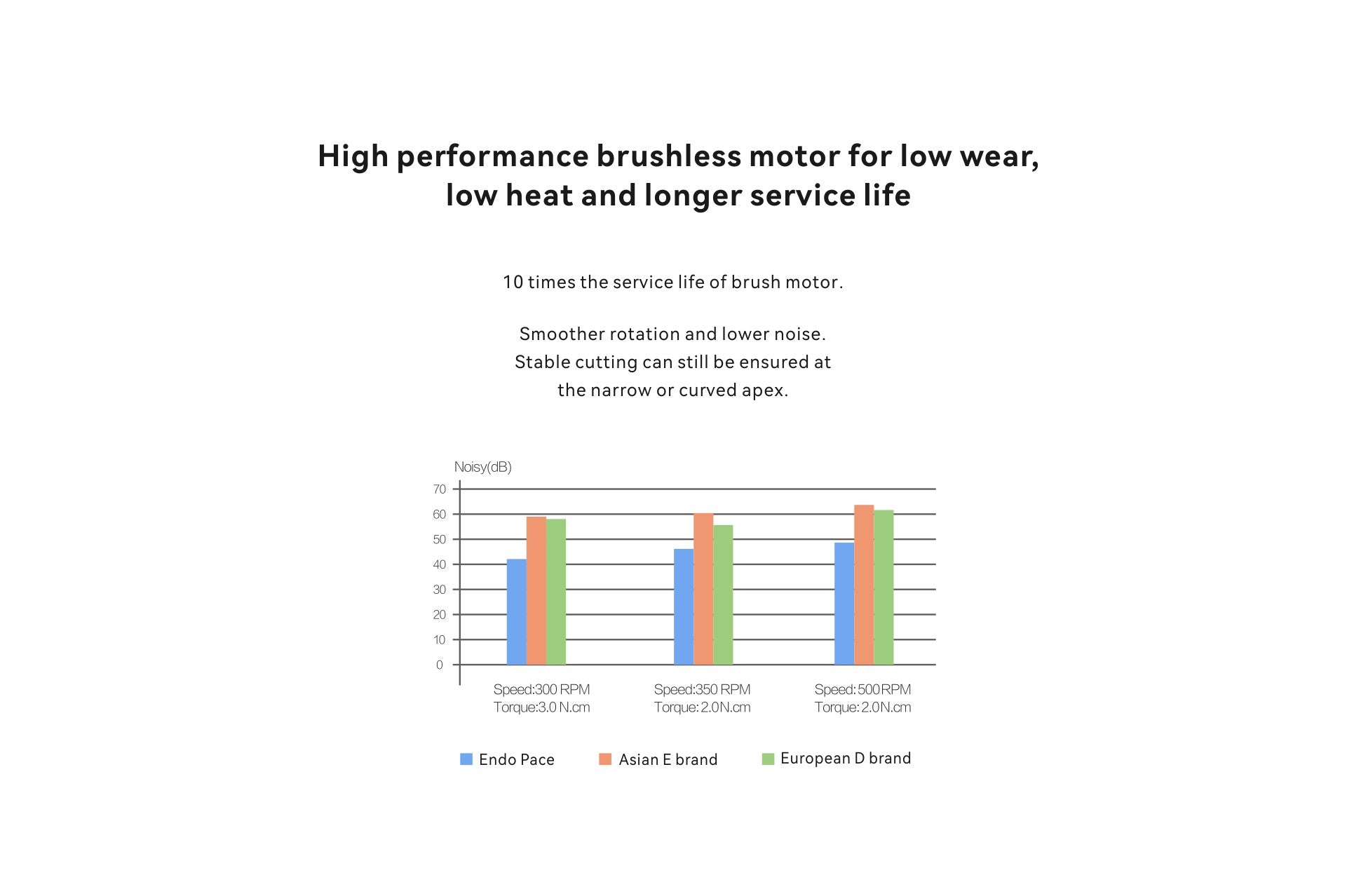

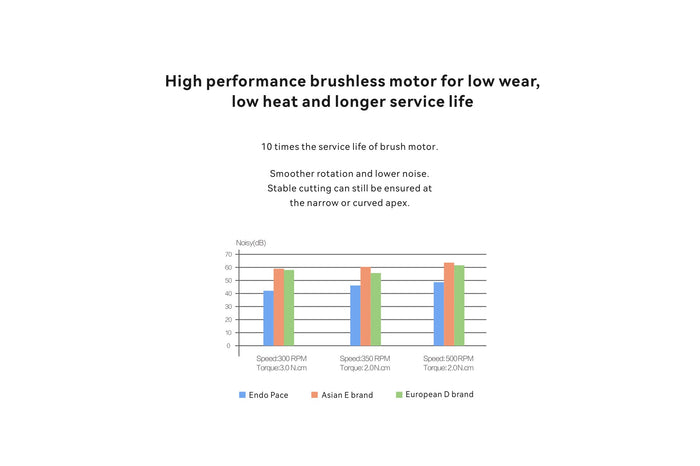

Smooth rotation and lower noise during operation
Stable torque output supports canal preparation

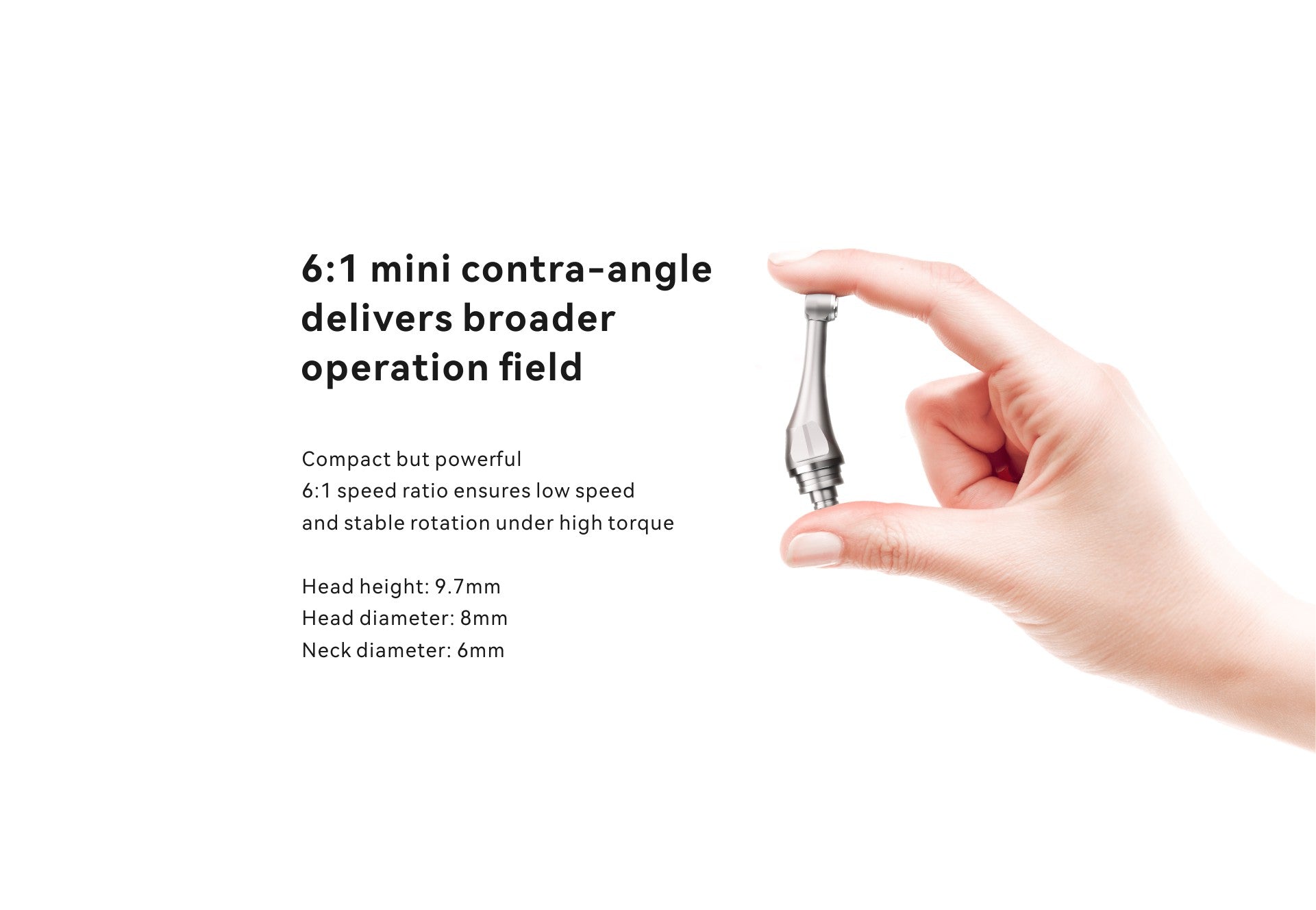

Super Mini Contra Angle Size:

The 8 mm diameter and 9.7 mm high head provide a compact design

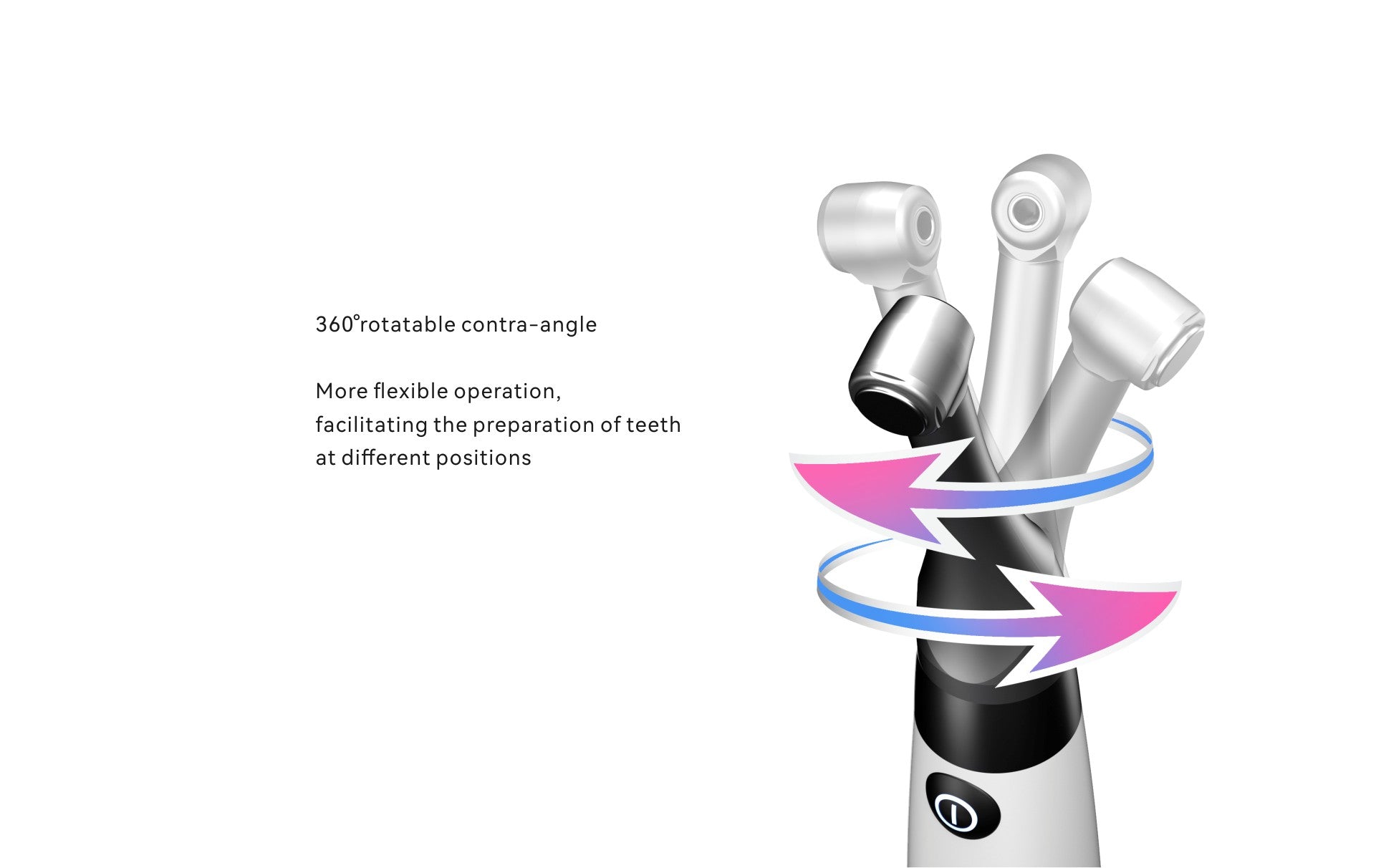

360 degrees adjustable contra-angle
1st Brushless Endomotor by DTE / Woodpecker
6:1 Contra-Angle
Built-in programmed memory of 30 mainstream file systems
2000 mAh Lithium Battery

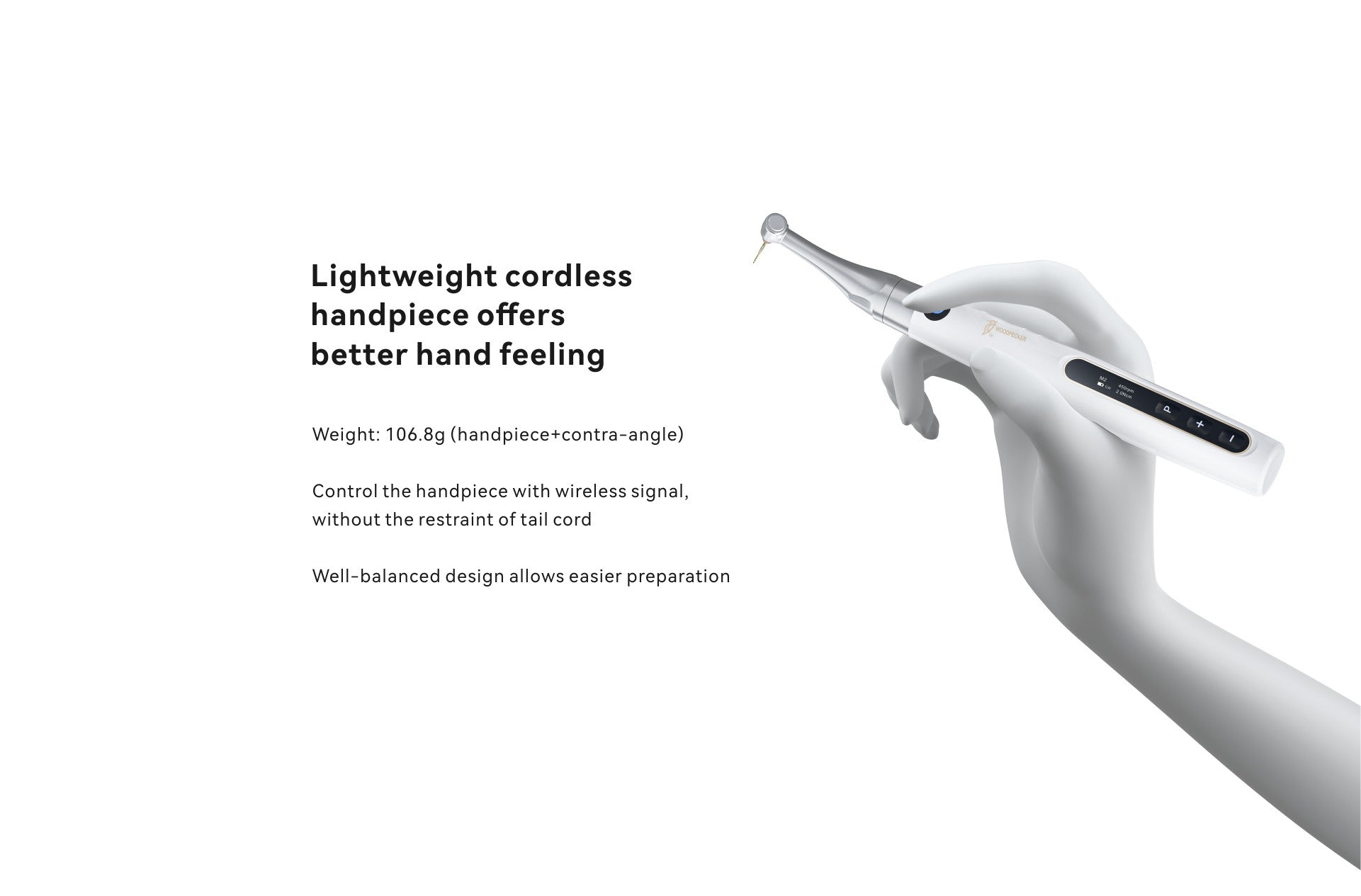

The centre of gravity is positioned towards the front of the device for handling

Built In Endo Motor:

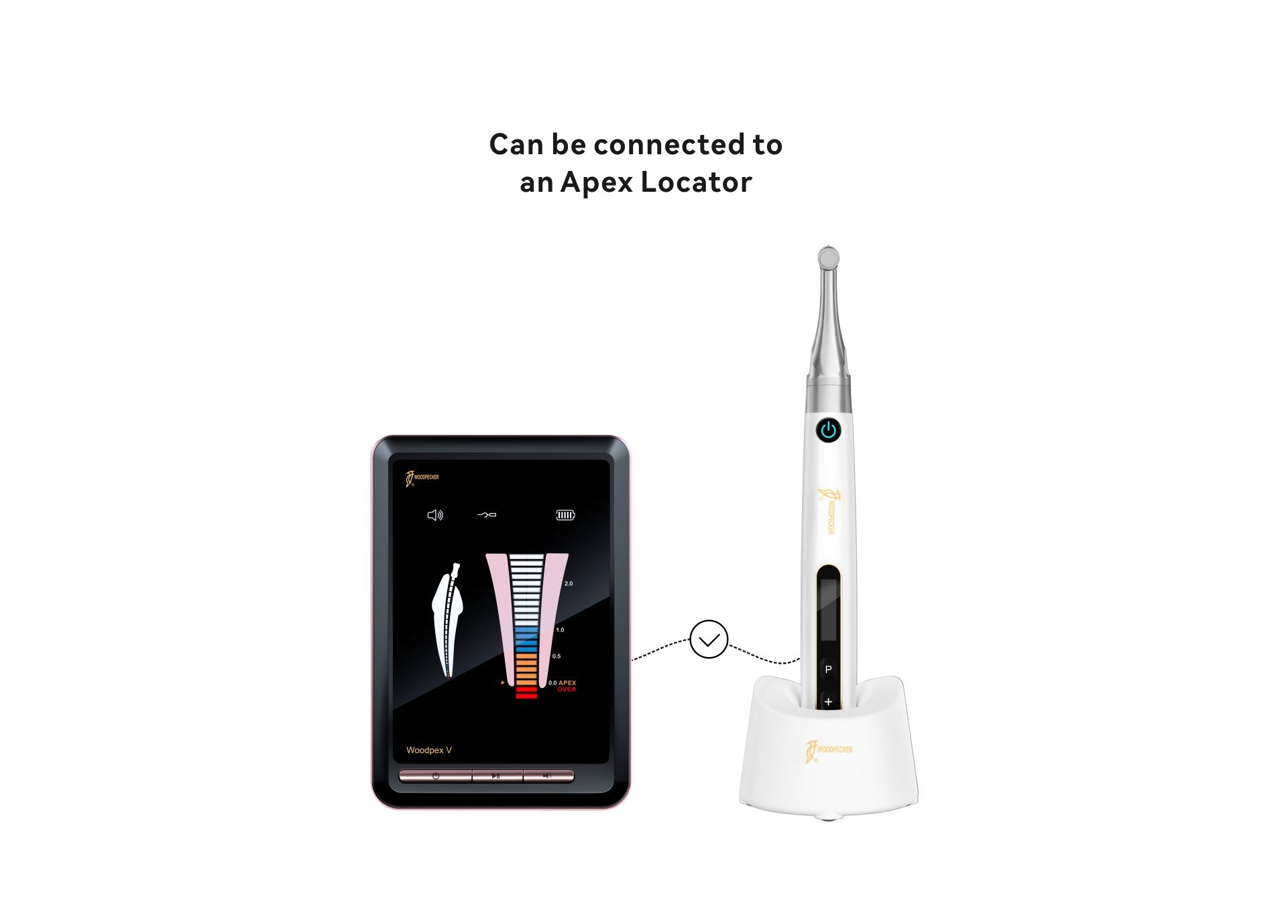

2 in 1 device supporting motor operation and compatibility with apex locator
Supports measurement functions when connected with compatible devices
Displays file position when used with compatible systems
Auto start and stop functions based on operation

Advantages:

Slim Neck
Motor performance features
Rotational control
Lower operating noise
Balanced weight
Built-in Apex Locator compatibility
File position display when connected
340 Degree Rotatable Contra Angle
Front Centre of Gravity

Specifications:

Lithium battery in motor handpiece: 7V /2000mAh
Torque range: 4Ncm-5.0Ncm（4mNm ~ 50mNm）
Speed range: 100rpm~1200rpm
Power input: ~100V-240V 50Hz/60Hz 400mA Max
Power output: DC5V/1A

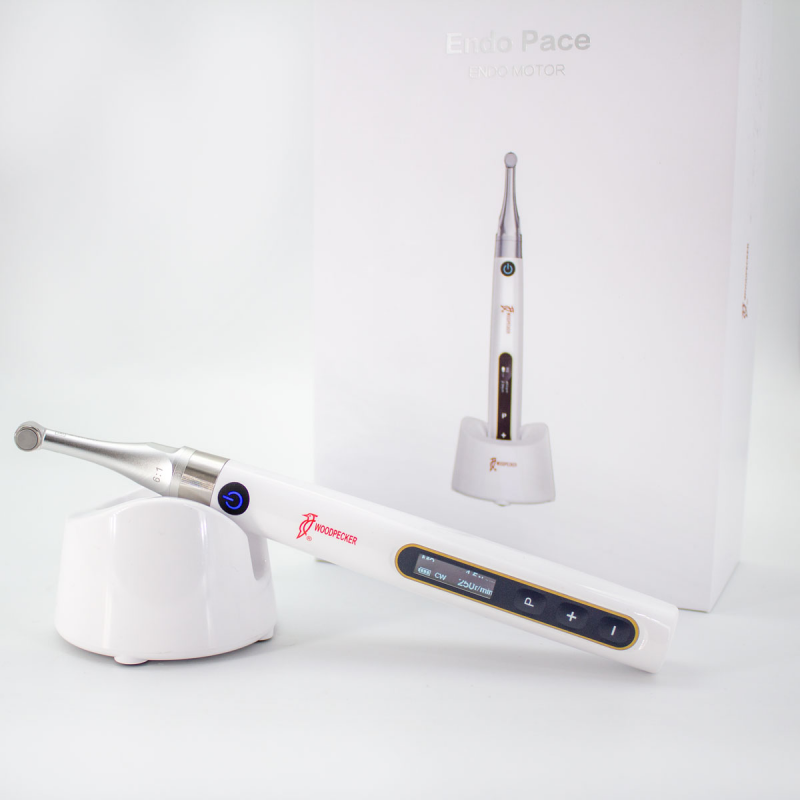

Packaging includes the following:

1 x Endo Motor Unit
1 x Charging Unit
1 x Power Adapter
